PolyFlex Engine Mounts |
| ||
Poly Flex mounts are designed as true PROPULSION ENGINE MOUNTS; with sufficient vertical deflection to obtain the desired Vibration Isolation, combined with minimum Fore & Aft and lateral deflection under the Propulsion Load and Incitial Loads due to sca conditions.
Our mounting systems cater for Marine, Defence, Agricultural, Mining & Industrial Applications and are long lasting and oil/fuel resistant.
Our mounting systems cater for Marine, Defence, Agricultural, Mining & Industrial Applications and are long lasting and oil/fuel resistant.

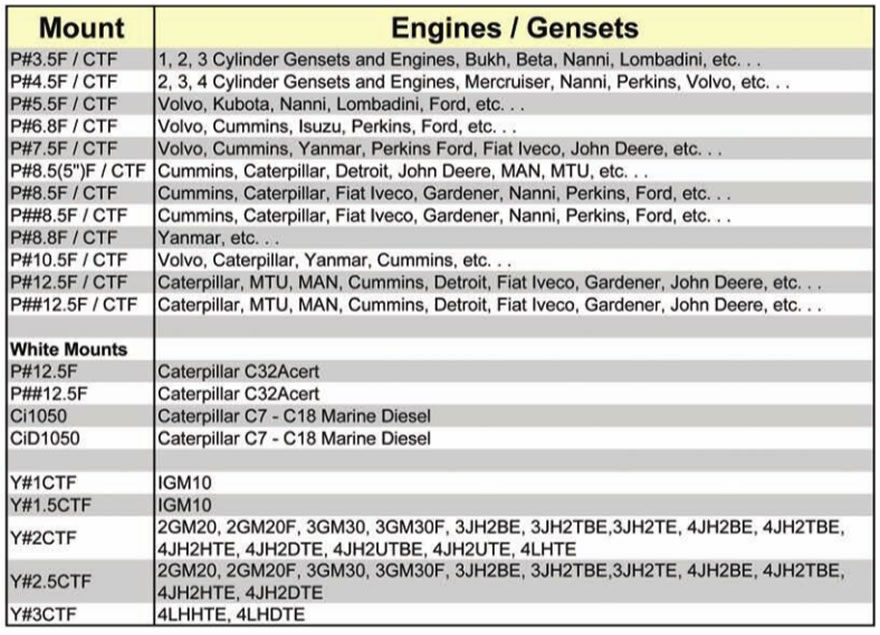

Match Your Engine Feet with Poly Flex Engine Mounts

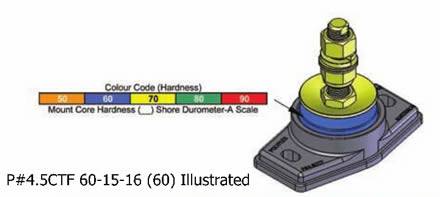

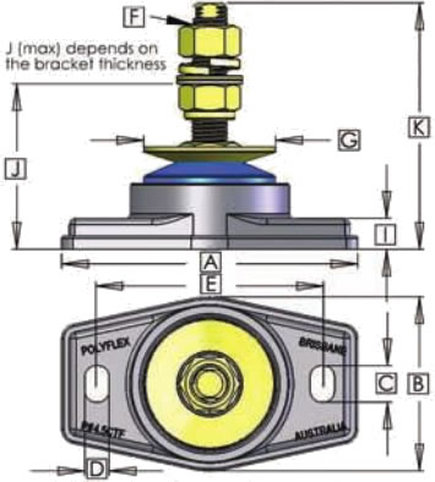

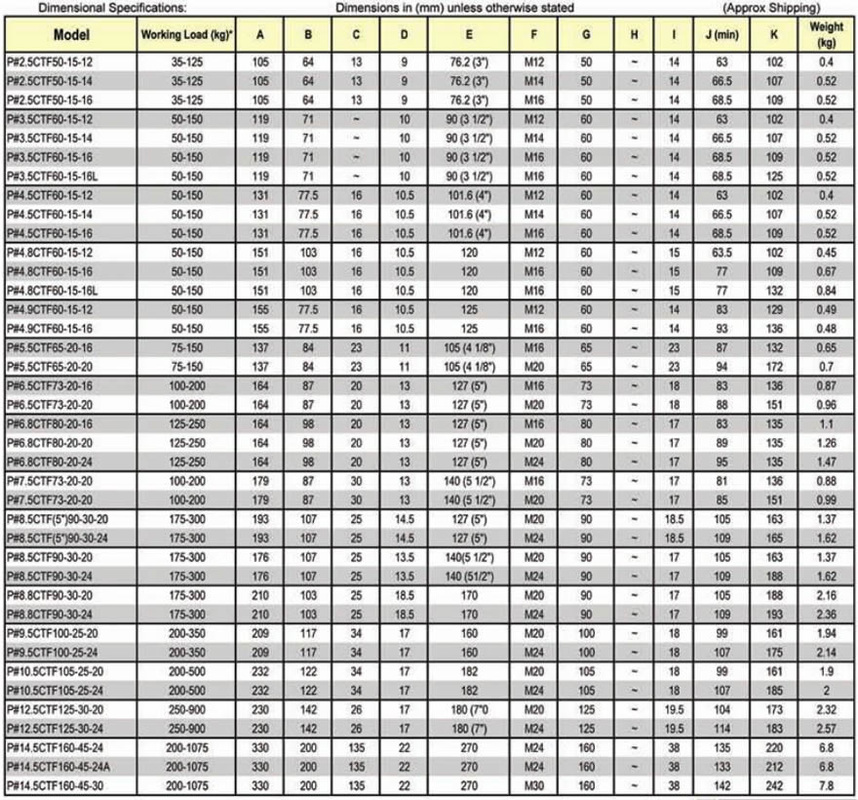

Poly Flex Engine Mounts: .5 & .8 CTF Series
|
Please Note:
Working loads stated are at 5.0mm static deflection for the range of hardnesses available N1th4: 1. An increased load will produce a larger static deflection. 2. In general the max. capacity of the mounts = 4 x Working Load. Dimensions and Specifications are subjected to change without notice. Data SHeets of axial, thrust and lateral load versus deflection are available on request from Poly Flex or any authorised distributor.
|
|

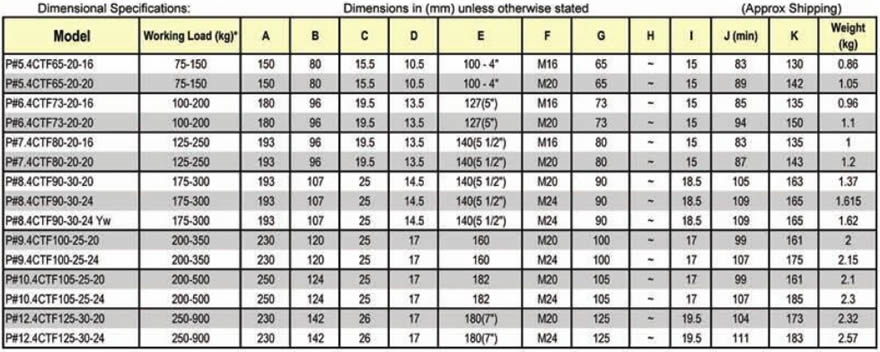

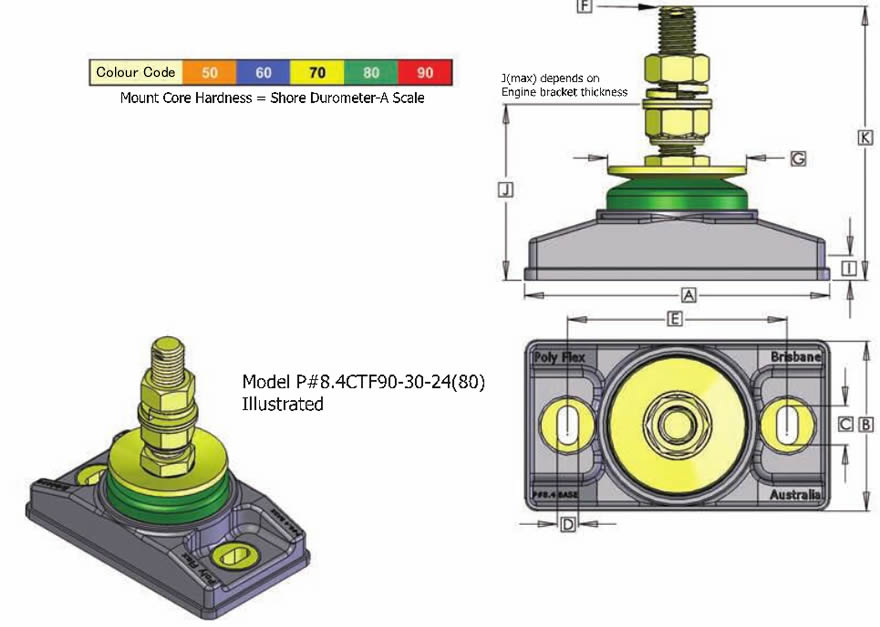

Poly Flex Engine Mounts: .4 CTF Series

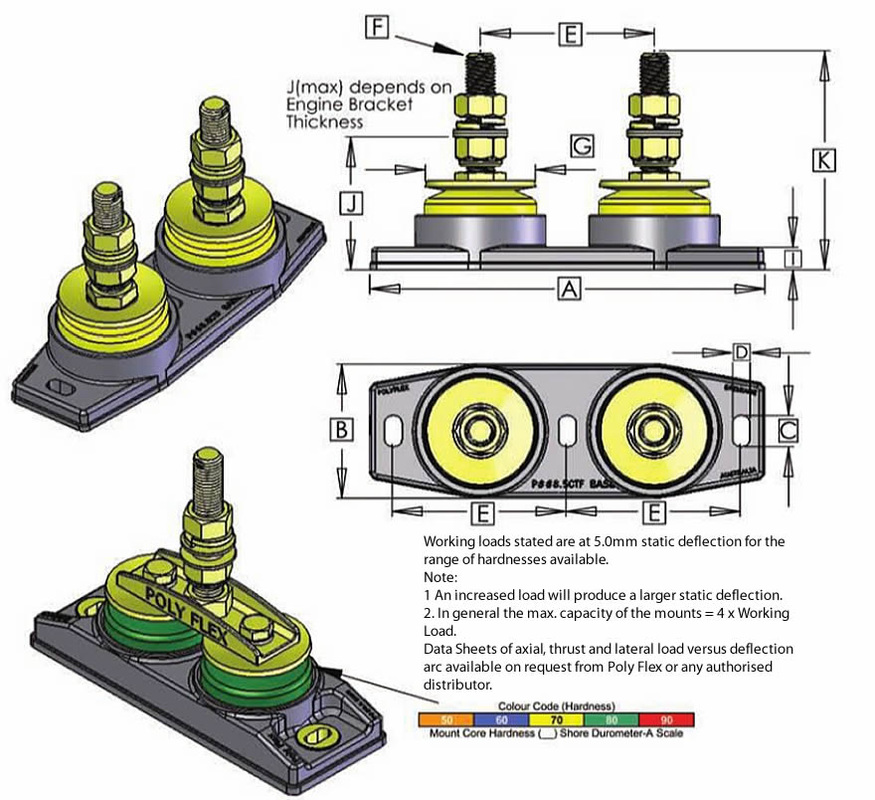

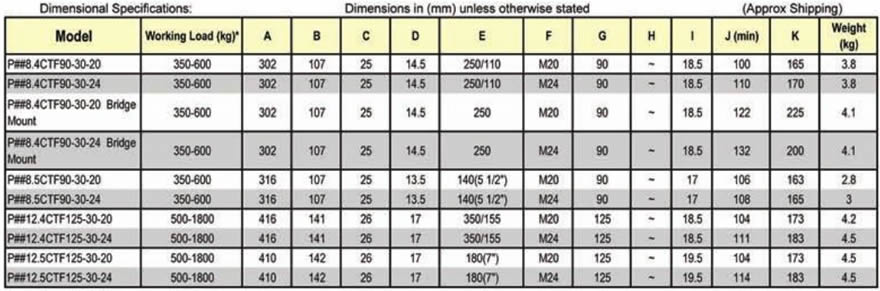

Engine Mounts: Double .4 & .5 CTF Series

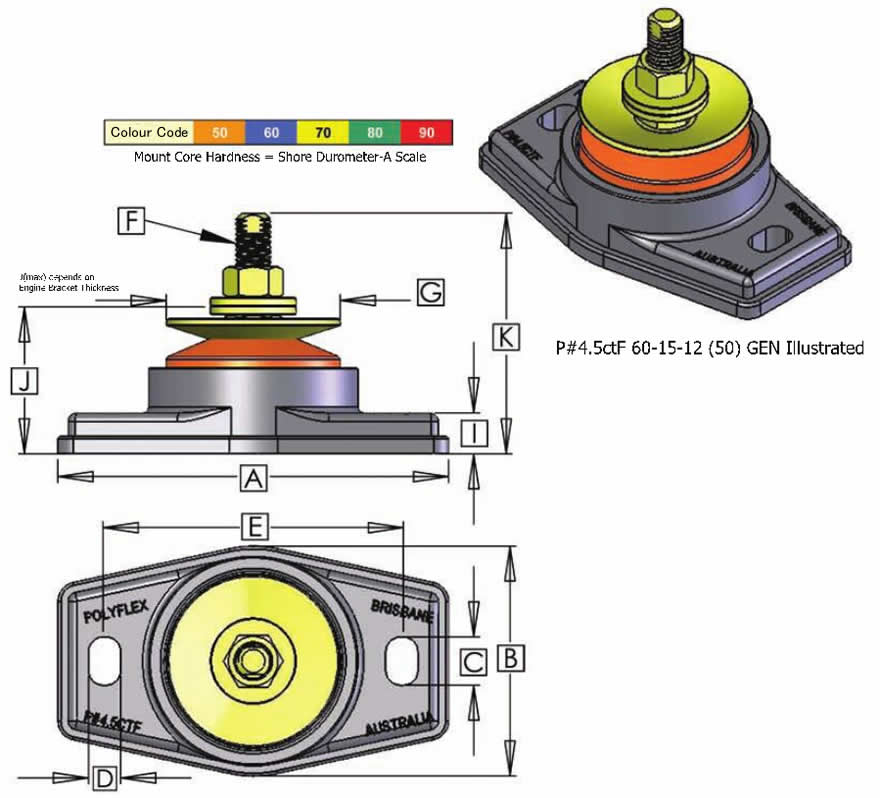

Poly Flex Engine Mounts: .5 CTF Genset
