Stainless Steel Exhaust Bellows & Expansion Joints |
| ||

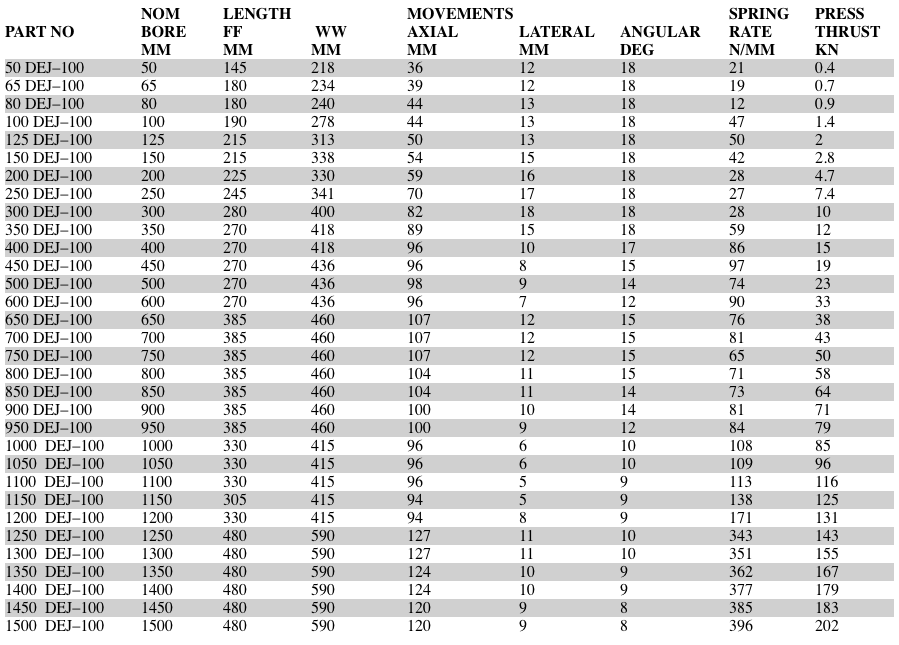

Diesel Expansion Joint (DEJ)
- Exhaust bellows are used for absorbing thermal expansion in exhaust, gas ducting and low pressure systems
- Standard assemblies with flanges, weld ends or a combination of both
- Pressure thrust will be transmitted onto pipeline. Correct anchoring and guiding must be used
- Internal flow liners for eliminating velocity and flow problems fitted as standard
- Standard working pressure is 100 kPa
- Standard diameters up to 5000 mm are available on request

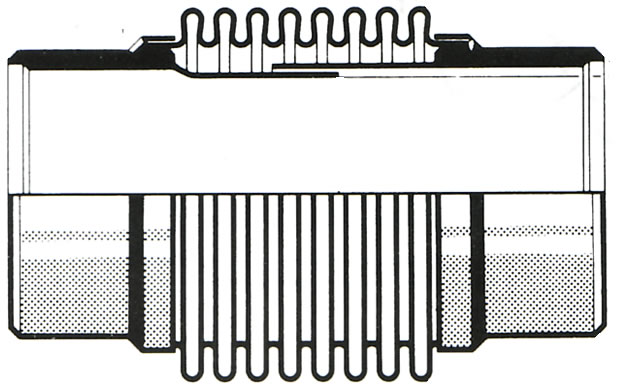

Pipe Ends with Inner Tube Marine Liner ..... Easy to weld on

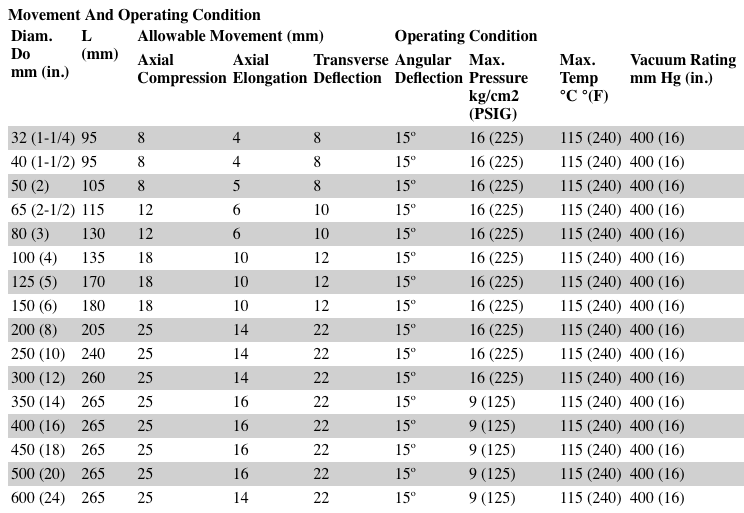

Single Sphere Rubber Expansion Joint
Application fluids:
Water, warm water, seawater, weak acids, alkalies, etc.
Available flanges drilling:
JIS, DIN, ANSI, TAB / BS and specialised drilling.
Available material:
EPDM, Neoprene, Buna/Nitrile, Viton, Hyperlon, Natural
Rubber and Butyle.
Application fluids:
Water, warm water, seawater, weak acids, alkalies, etc.
Available flanges drilling:
JIS, DIN, ANSI, TAB / BS and specialised drilling.
Available material:
EPDM, Neoprene, Buna/Nitrile, Viton, Hyperlon, Natural
Rubber and Butyle.

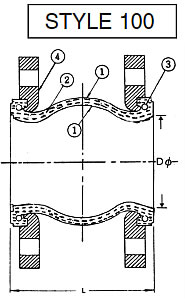

Item Part Material
1 Body Heat Resisting Rubber
2 Body Nylon Tyre Cord
3 Wire Hard Steel Wire
4 Flange Mild Steel
