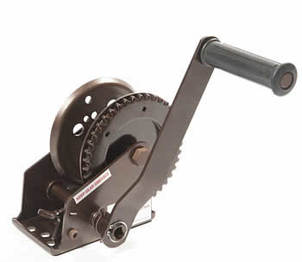

Hand Winches Kylan Powder Coated |
| ||
OPC Kylan Coating is a new and unique process which uses baked-on, non-toxic, environmentally friendly, organic, macromolecular monomer coating compound.
This, combined with aluminium and zinc, provides a highly corrosion resistant coating on steel.
By using OPC Kylan Coating with stainless steel fasteners and fittings on all of the winches, Pacific Hoists has a unique range of corrosion resistant winches which can stand up to over 1000 hours of salt spray testing.
PRODUCT FEATURES
This, combined with aluminium and zinc, provides a highly corrosion resistant coating on steel.
By using OPC Kylan Coating with stainless steel fasteners and fittings on all of the winches, Pacific Hoists has a unique range of corrosion resistant winches which can stand up to over 1000 hours of salt spray testing.
PRODUCT FEATURES
- Compact, lightweight and rugged construction.
- Mechanical components enclosed for protection and safety.
- Available with a powder-coated or a marine-coated corrosion resistant finish.
- Rope to drum fixing clamp provided.
- Heat-treated gears.
- Strong removable handles.
- High precision construction minimises gear noise.
- HW1500 is a worm drive version

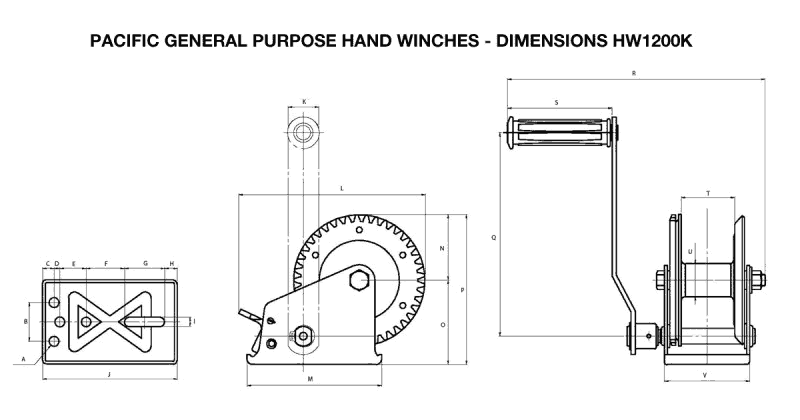

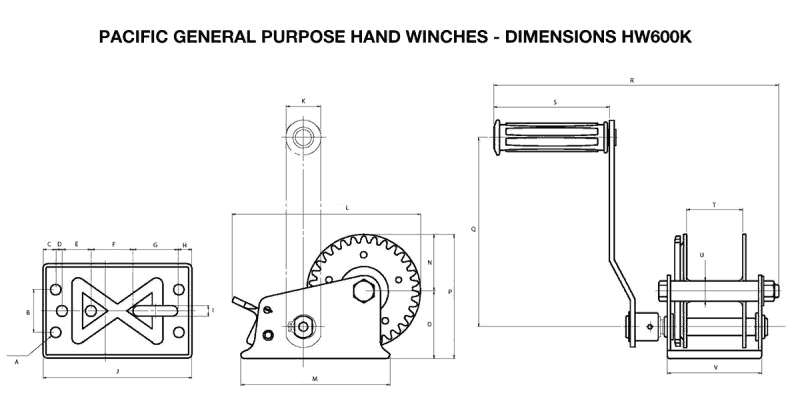

| MODEL | HW600K | HW1200K | HW1500 |
|---|---|---|---|
| Pulling Capacity (kg) | 280 | 550 | 680 |
| Lifting Capacity | N/A | N/A | 340 |
| Finish | Kylan | Kylan | Powder-coated |
| Gear Ratio | 3.1 : 1 | 4.1 : 1 | 41.0 : 1 |
| Handle Length (mm) | 175 | 210 | 195 |
| Hub Diameter (mm) | Ø19 | Ø34 | Ø48 |
| Cable Diameter (mm) | Ø4.0 | Ø4.8 | Ø5.6 |
| Net. Weight (kg) | 2.26 | 2.84 | 5.0 |
