Hand Winches Stainless Steel
|
| ||
PRODUCT FEATURES
- Positive Weston-style brake will hold the load in any position.
- Compact, lightweight and rugged construction.
- Mechanical components enclosed for protection and safety.
- Available with a powder-coated or a marine-coated corrosion resistant finish.
- Rope to drum fixing clamp provided.
- Heat-treated gears.
- Strong removable handles.
- High precision construction minimises gear noise.
- AS1418.2 Compliance applies when correctly fitted with approved wire rope and fittings.
- BHW models available with marine-coated Kylan finish.
- BHW1200 / BHW1800 / BHW2600 also available in stainless steel.
- BHW1200 available as a noiseless model.

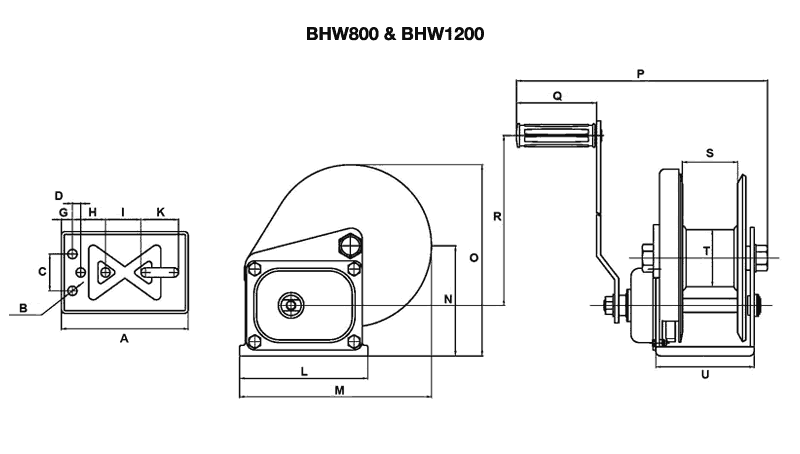

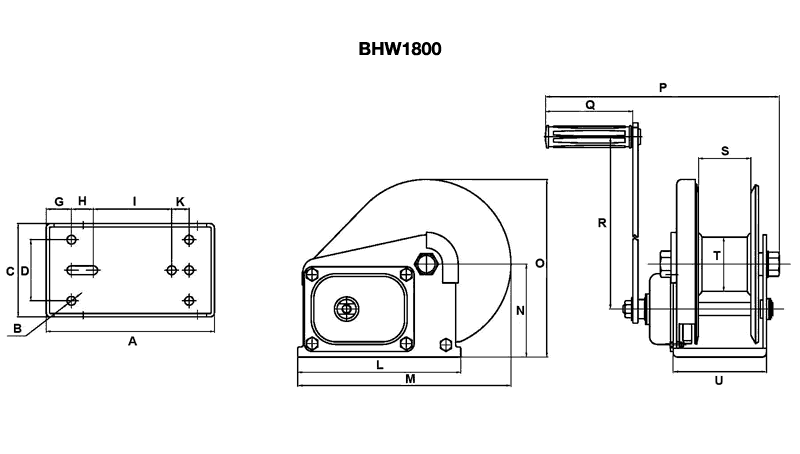

| MODEL | BHW-800 | BHW-1200 | BHW-1800 | BHW-2600 | SF-2200 |
|---|---|---|---|---|---|
| Pulling Capacity (kg) | 370 | 545 | 820 | 1200 | 1700 |
| Lifting Capacity | 180 | 270 | 410 | 600 | 850 |
| Hand Force Required (kg) | 14.5 | 15 | 22 | 19 | 16 |
| Standard Finish | Powder-coated | Powder-coated | Powder-coated | Powder-coated | Powder-coated |
| Gear Ratio | 4.1 : 1 | 4.1 : 1 | 5.0 : 1 | 10 : 1 | 22.2 : 1 |
| Handle Length (mm) | 160 | 210 | 320 | 320 | 300 |
| Hub Diameter (mm) | Ø40 | Ø50 | Ø70 | Ø80 | Ø60 |
| Cable Diameter (mm) | Ø4.1 | Ø4.8 | Ø6.4 | Ø8.0 | Ø6.4 |
| Net. Weight (kg) | 3.0 | 3.3 | 8.0 | 10.3 | 13.5 |
| Kylan Finish Available | Yes | Yes | Yes | Yes | No |
| Stainless Steel Available | No | Yes | Yes | Yes | No |
| Noiseless Available | No | Yes | No | No | No |
