Black Steel Chain
Black Steel Chain
File Size: 247 kb
File Type: pdf
Download File

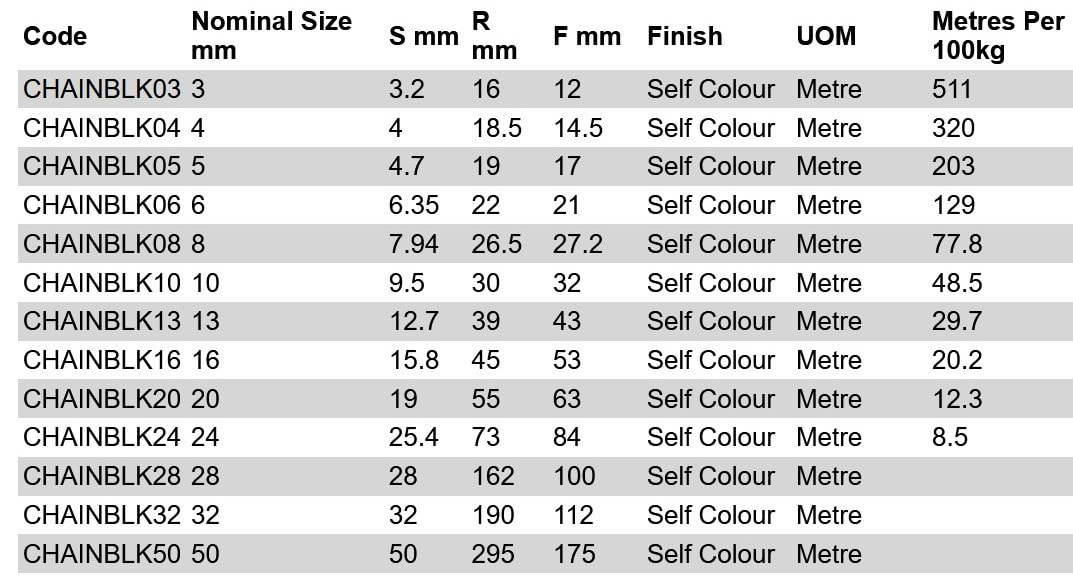

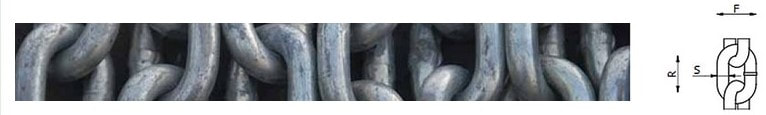

Black steel chain, also known as "Proof Coil Chain" is a non-rated chain, manufactured from low carbon steel and is for general purpose use only.

“Proof coil” relates to the number of consistent links in any one length.

Not to be used for lifting....
  • Not suitable for any lifting or towing purposes
  • Lengths include – regular link and long link
  • Available in Hot Dipped Galvanised, Electro Galvanised and Self Colour
  • Available in 3 - 24mm
200Kg Mooring Wheels

​Mooring Chain and Accessories
mooring_strop.pdf
File Size: 447 kb
File Type: pdf
Download File

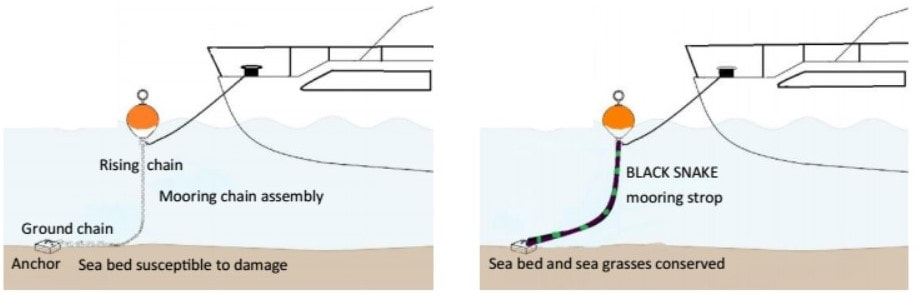

Black Snake Nylon Mooring Strops replace ground/rising chains and are ideal for marine mooring applications. Unlike chains, the Black Snake Mooring Strops minimize damage to the sea bed’s vegetation around the mooring block/anchor. The smooth stretch of the nylon core absorbs shock loads in the wave and tidal conditions of the marine environment.

The embedded thimbles (heavy duty galvanized or stainless) eliminate fraying of the nylon fibres and the thick rubber cover maintains the full strength of the nylon in salt water and also protects the thimbles. Approved by Parks Victoria for installation in Victoria’s bays.
  • Friendly to the marine environment
  • Approved by Parks Victoria for installation in Victoria’s bays.
  • Abrasion/cut resistant rubber protects the inner nylon fibres from the elements and keeps out water, mud and creatures. The Mooring Strop is UV stabilised and salt water resistant allowing it to be virtually maintenance free for years
  • High strength Nylon 6.6 core with smooth stretch up to 20%
  • Very flexible and light weight and suitable with various attachment devices
  • Easy to install with galvanised thimble eyelets embedded into the rubber casing. Heavy duty stainless steel thimbles also available on request
  • Special thimble eye configurations can be requested
  • Individual serial numbers for easy traceability

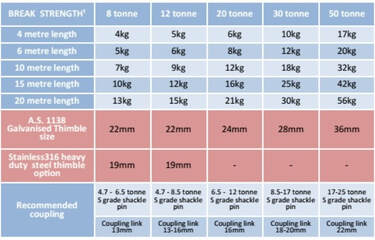

1. Break strength is the applied load at which the mooring strop fails

Higher break strengths up to 100t and different lengths up to 20metres available
Black Snake Nylon Mooring Strops are ideal for marine mooring applications.
Unlike chains, the Black Snake Nylon Mooring Strops minimize damage to the sea bed.
The smooth stretch of the nylon acts as a shock absorber in wave and tidal conditions of the marine environment.

Features of Black Snake Nylon Mooring Strops:
  • Smooth stretch of up to 20%
  • Very flexible and light weight
  • Abrasion and cut resistant rubber casing
  • Water resistant
  • High strength to weight ratio
  • Individual serial number for traceability
  • Australian Standard 1138 galvanised thimble eyes. Stainless steel thimble eyes are also available upon request
  • Available in standard 8 tonne and 12 tonne break strength in lengths up to a maximum 20 metres. Other break strengths available upon request.

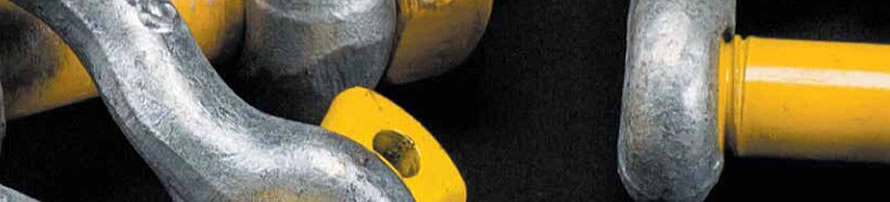

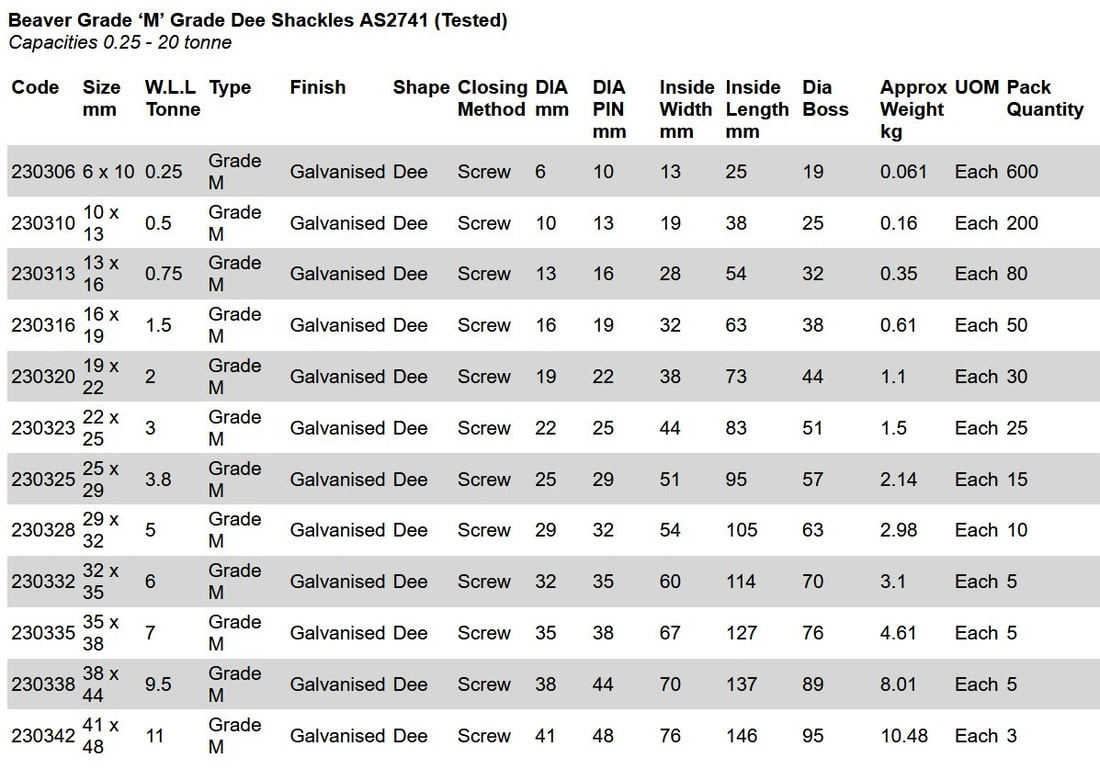

Shackles
